Model 1 of 5 · one room + loft
The Studio
The smallest AFRME. A single room with a sleeping loft under the ridge, built to be placed in multiples.

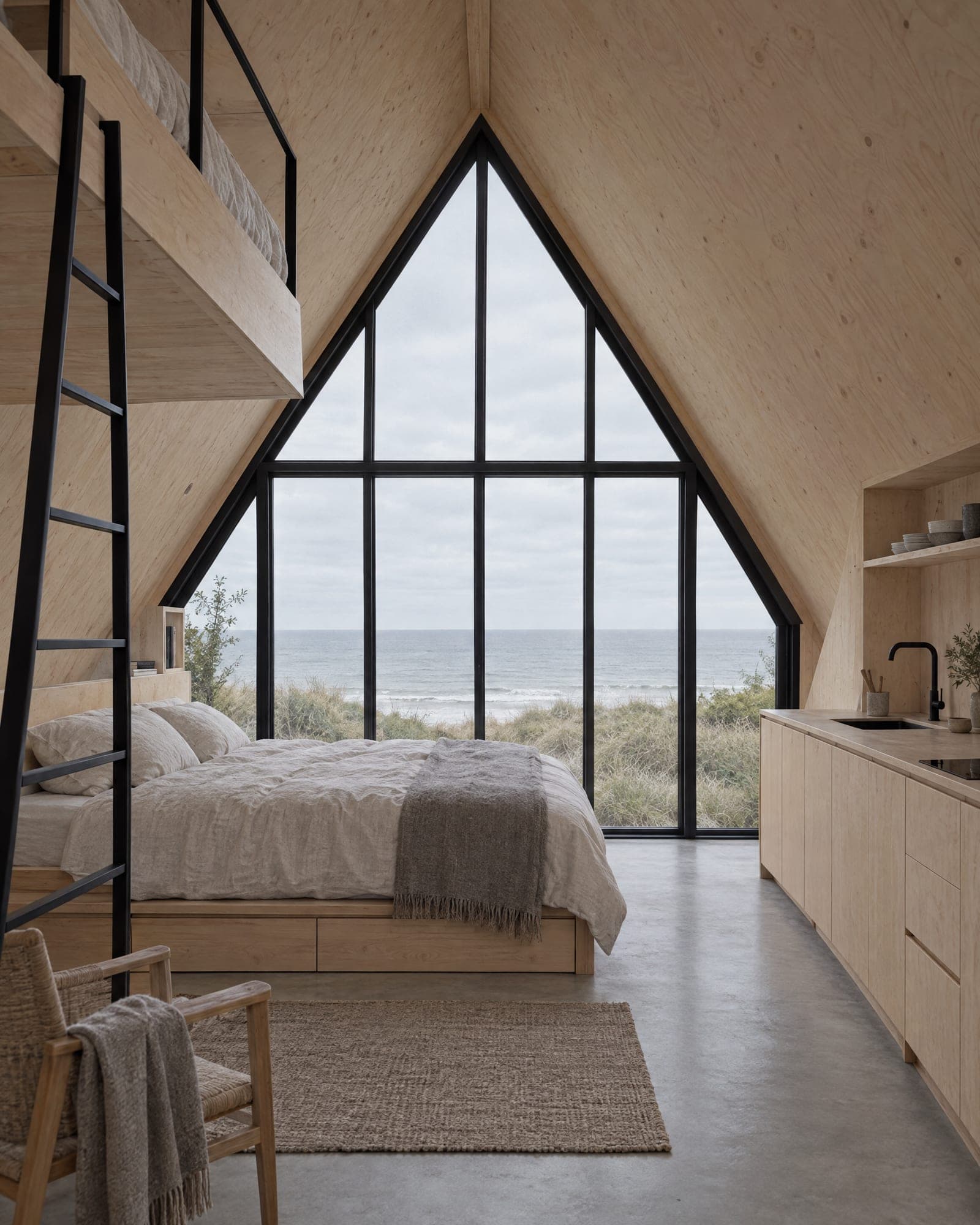

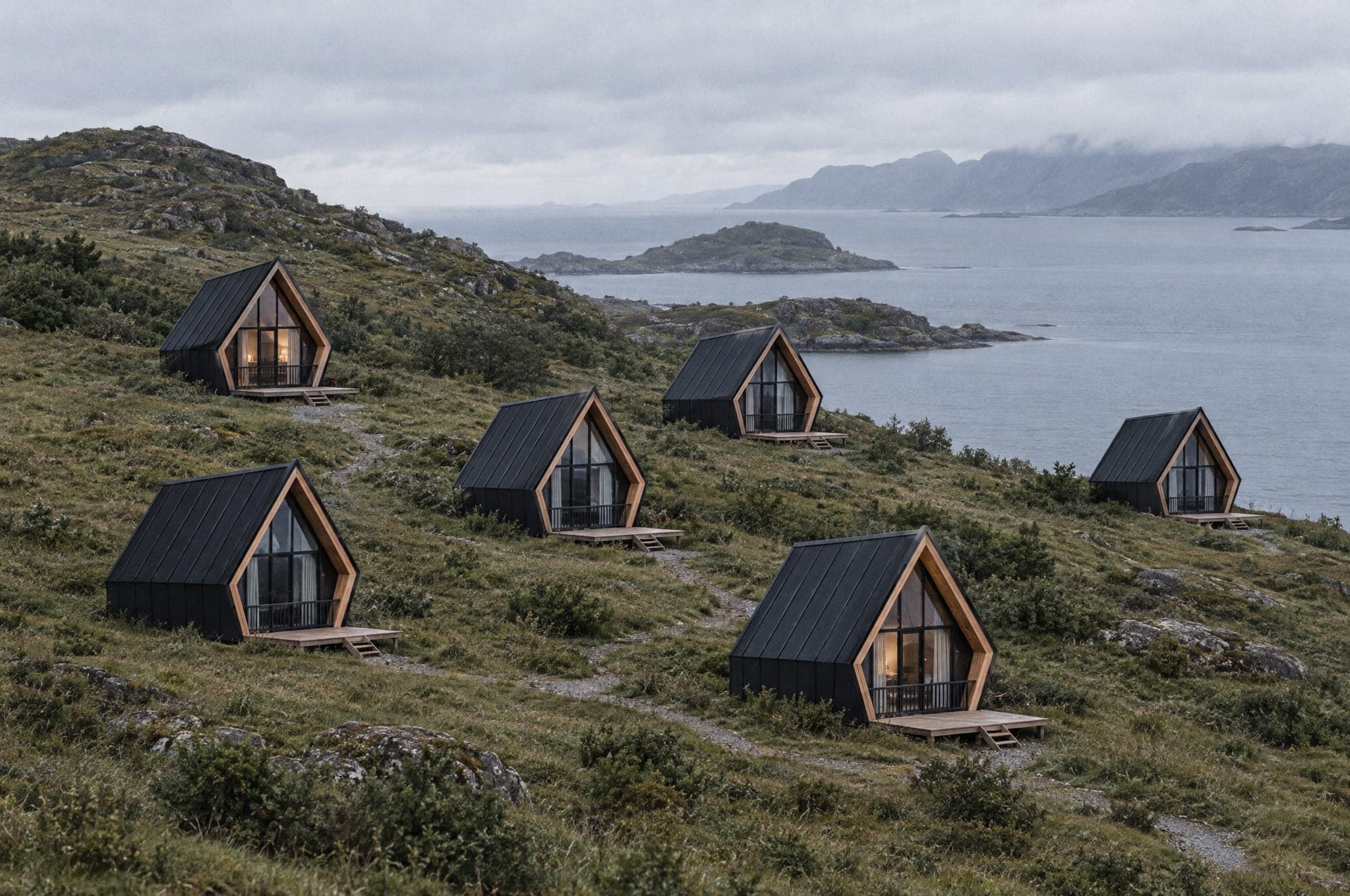

The Studio is the unit behind our hospitality work: a glazed gable, a compact bathroom, a kitchenette wall and a loft that sleeps two. It arrives as one flat-packed crate of AFRME System™ components that our crew stands in days, and it sits happily on screw piles, so a cluster can be placed on sand, rock or a slope without heavy groundwork.
- Full-height glazed gable with sliding door
- Sleeping loft for two under the ridge
- Bathroom and kitchenette wall pre-planned
- Screw-pile ready: minimal site work
- Delivered as one crate
- Floor area
- 340 sq ft32 m²
- Footprint
- 7′ 8″ × 18′ 4″2.3 m × 5.6 m
- Width at knee
- 17′ 1″5.2 m
- Ridge height
- 23′ 8″7.2 m
- Knee height
- 8′ 1″2.5 m
- Levels
- 2Main floor, Loft
- Sleeps
- 2
- Bedrooms
- Sleeping loft1 bath
- Best for
- Surf camps · Cabin hotels · Guest houses · Backyard offices
The AFRME System™ in The Studio
- AFRME structural connectorThe steel node at the knee and the ridge.
- AFRME roof cassetteStructure, insulation and metal in one lift.
- AFRME wall panelThe kicked lower wall as one panel.
- AFRME utility spineEvery service routed through one core.
- AFRME foundation interfaceThe steel base that ties the house to the ground.
- AFRME window moduleThe glazed gable as one unit.
Reserve a 2027 build slot for The Studio.
Free, and not a commitment. A reservation holds your place in the production schedule and gets you pricing and System details before anyone else.
